Teaching a Position

Teaching the robot a position is a common task that generally involves putting the robot in the desired position and then recording the position for later use.

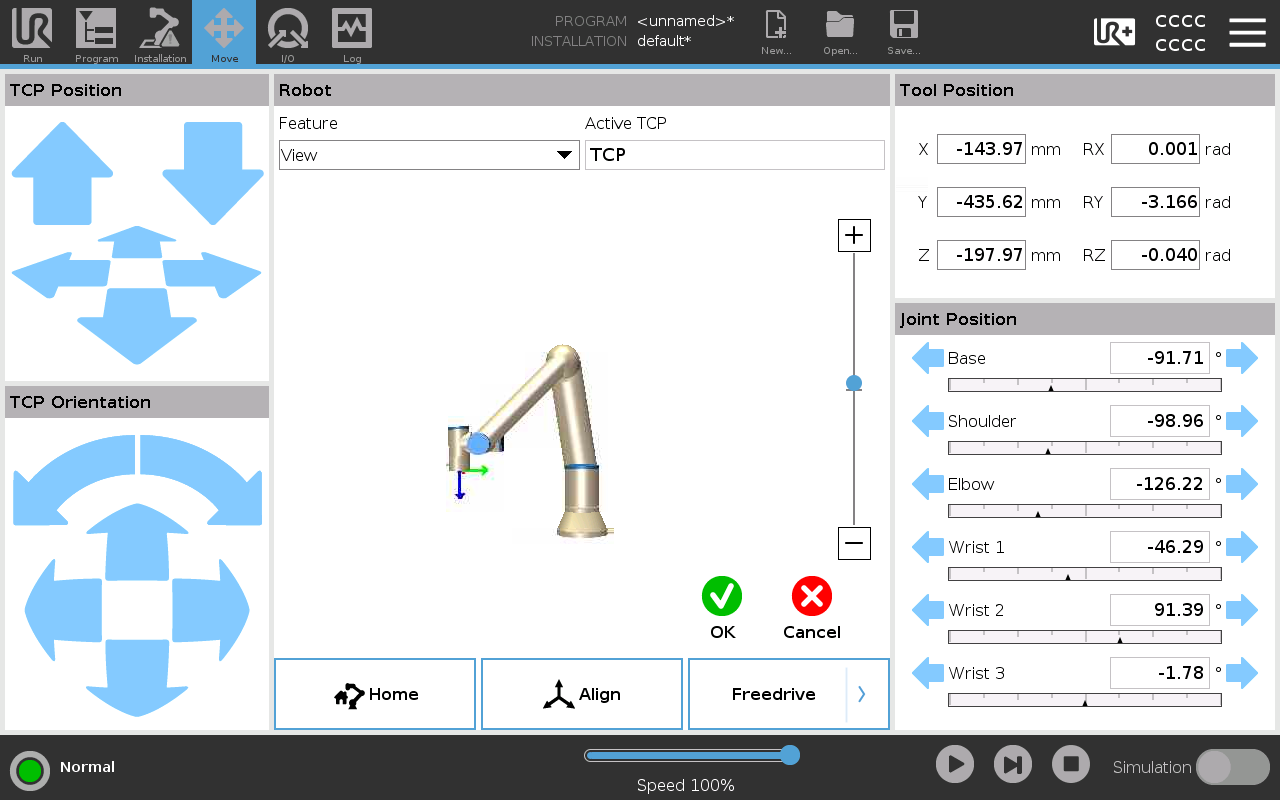

The PolyScope Move screen opened to teach a position, with the Freedrive and Align buttons

Teaching a position

Two drawings: the Teach Pointer on the head of a screw in the hole, marked right, and in an empty hole, marked wrong

Teaching the position of a screw. The position is always taught with the Teach Pointer in the screw head, and not the hole. The screw must be driven all the way down.

  1. Manually insert the screw into the workpiece in its final position. Never teach on an empty hole — the seated screw is what sets the correct depth and alignment.

  2. Press the teach button in the program node that you want to teach the position in.

  3. Insert the Teach Pointer into the tool. See Manual Bit Changing.

  4. Move the robot to the desired position. This is typically done in freedrive mode by holding the Freedrive button on the back of the tool.

  5. Now you should align the robot to the z-axis, or teach the position as is. Accurate alignment of the tool with the screw axis is critical for stable and repeatable screwdriving.

  6. Press OK.

Note

It is possible to move the robot into the desired position by using the Jog buttons on the robot. However, when the Teach Pointer meets the surface, make sure that the tool is not pushed upward and away from its resting position in the safety rail slider on the back of the tool. It is a common mistake to teach the robot a false position because the tool is not in its resting position.
