Updating Spin Bridge

Updating Spin Bridge

1. Plug the Spin Bridge in to power.

2. unplug any eathernet cable in the 2 Robot port.

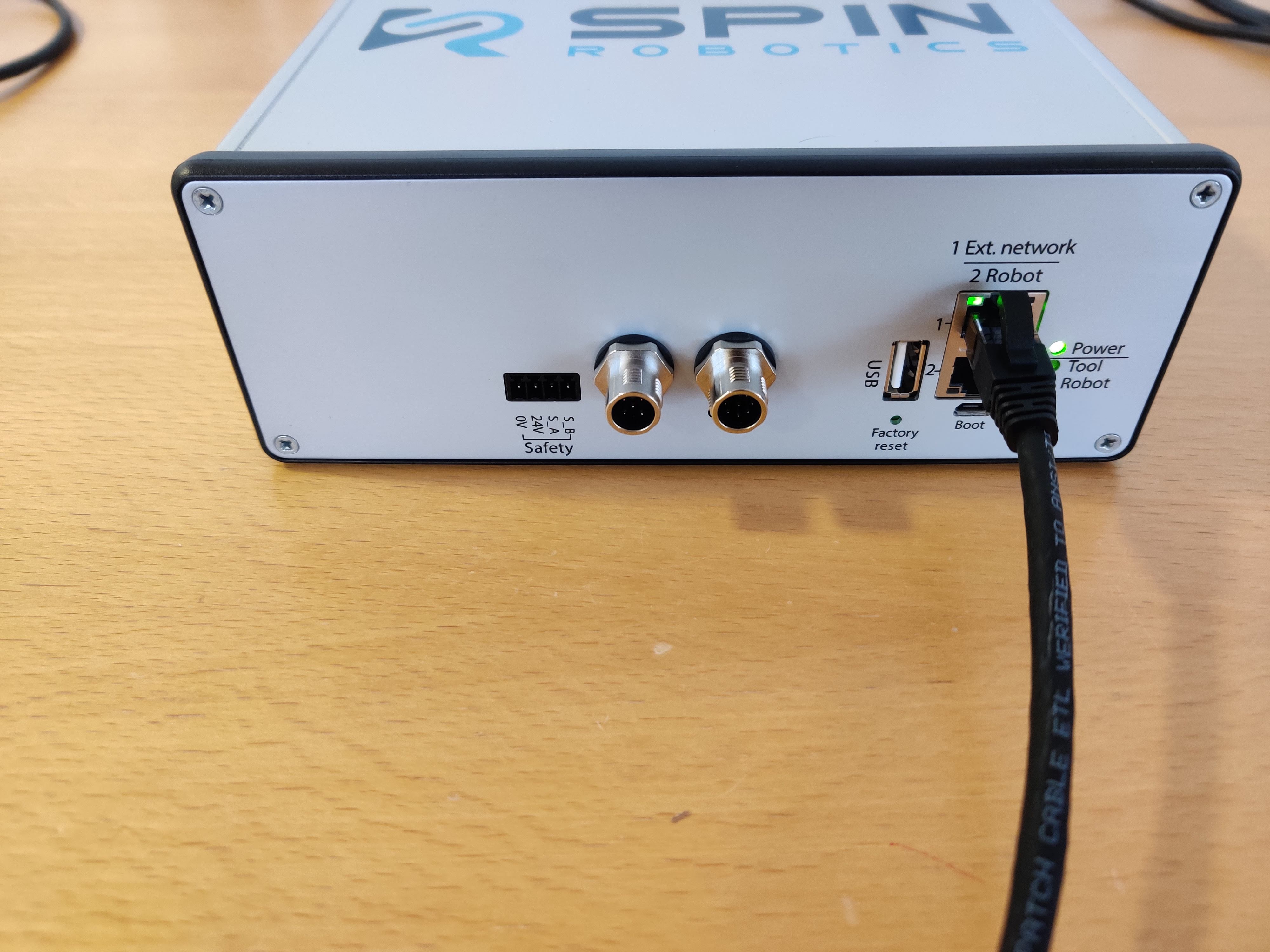

3. Plug the Spin Bridge in to an external network with internet acces using the 1 Ext. network port. No tool needs to be connected.



4. connect a labtop to the wifi hotspot SpinBridge-xxxx as normal and navigate to the Spin Dashboard 10.42.0.1/

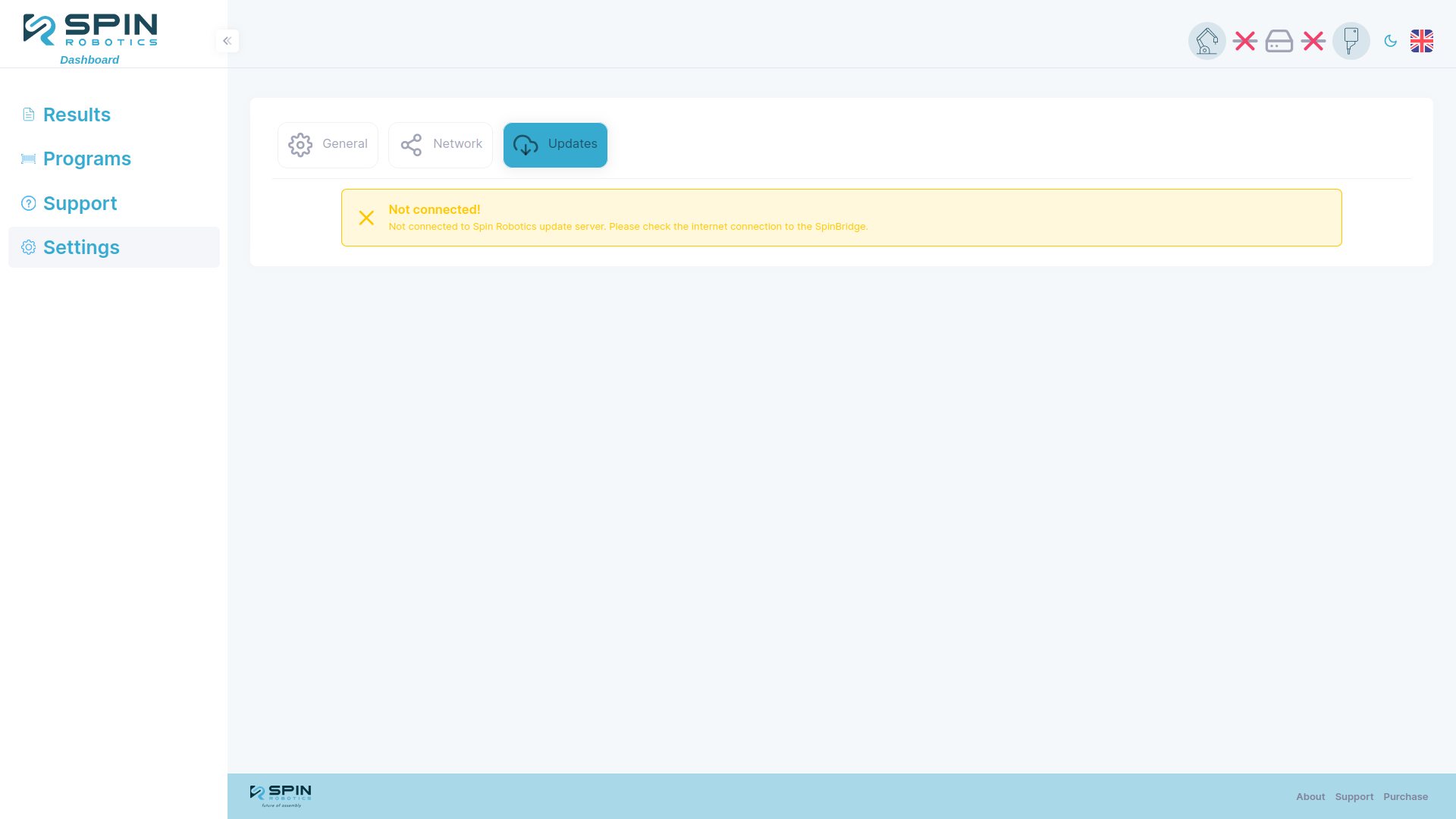

5. If you are unshure if the Spin Bridge is connected to the internet you can check the status of the connection on the update page where the internet connection is shown as Connected! in green or Not connected! in yellow.

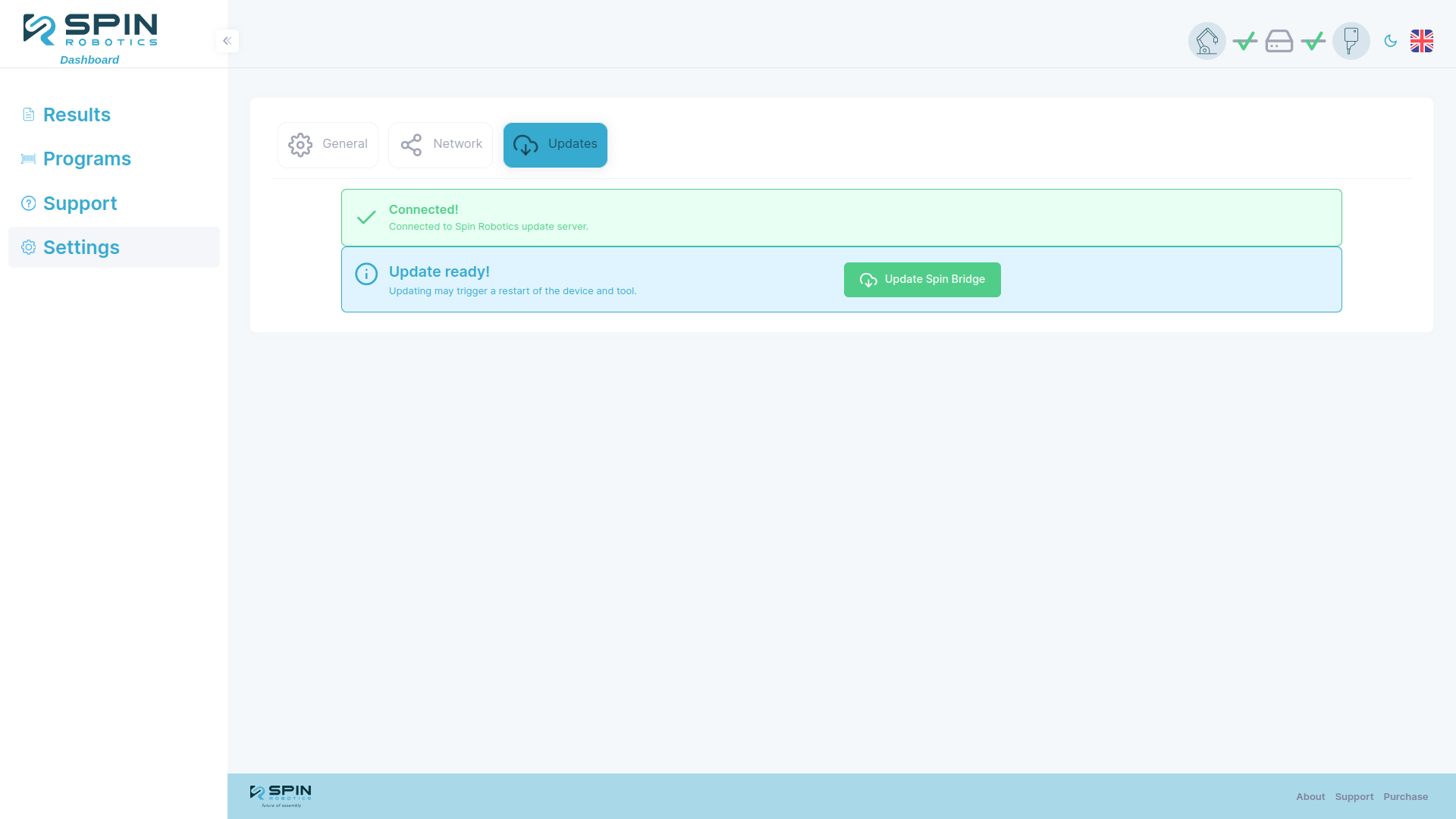

6. On the Spin Dashboard navigate to Setting/Updates and click the “update spin bridge” button. If you dont see the button then the Spin Bridge either dont have internet connection or there is no update avalible (see changelog ), the page may look different depending on version.

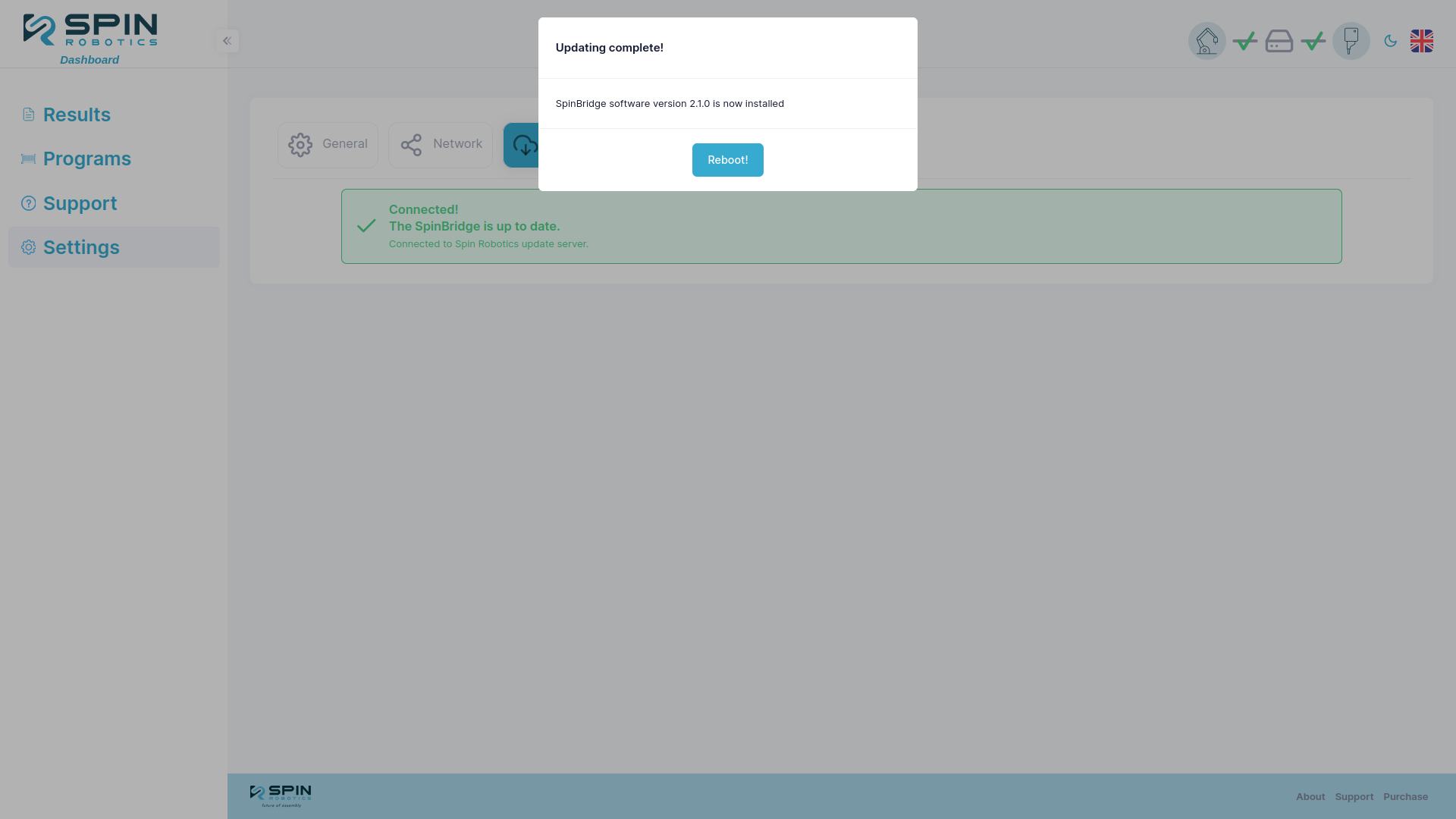

7. now wait for the update to complete. you may lose connetion to the bridge, this is norman and it will reconnect when the update is done and a reboot button is shown.
