Spin Mount Specifications

The Spin Mount provides the mechanical interface between the SD/SDV-Series tool and the robot.

The interface complies with:

ISO 9409-1
Type 50-4-M6

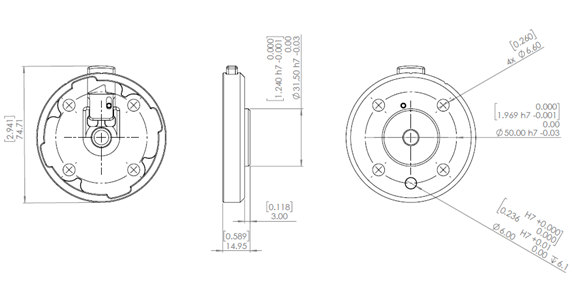

All dimensions and tolerances are shown in mm [inch] in the drawing below.

Dimensioned drawing of the Spin Mount from the robot side, from the side and from the tool side

Proper mounting is critical for performance and load transfer. The robot flange must match ISO 9409-1 Type 50-4-M6, the mounting bolts must be correctly tightened, and the interface must be clean and free of debris. Misalignment or improper mounting may affect accuracy and tool lifetime.
